Jetson Tx2 Module Embedded Pc Board 900-13636-0010-000 Embedded Development Board

Product Categories

Beijing Plink AI Technology Co., Ltd

Contact Now

Jetson Tx2 Module Embedded Pc Board 900-13636-0010-000 Embedded Development Board

Name: Jetson Tx2 Module Embedded Pc Board 900136360010000 Embedded Development Board
Brand: PLINK
Price: 189 USD

Best Jetson Tx2 Module Embedded Pc Board 900-13636-0010-000 Embedded Development Board wholesale

Brand Name : PLINK

Model Number : Y-C1-TX2

Place of Origin : China

MOQ : 1PCS

Price : USD189-USD199\PCS

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : In stock

Delivery Time : 15-30 work days

NAME : Industrial Single Board Computer AI Embedded PC Board Jetson TX2 Module 900-13636-0010-000 Development Board

Key word : Industrial Single Board Computer AI Embedded PC Board Jetson TX2 Module 900-13636-0010-000 Development Board

USB3.0 ports (5Gbps bandwidth per port, 1A output current) : 2*

Power : 7.5W - 15W

Micro USB : 1*

miniPCIE : 2*

Function signal : 4x GPIO 1x I2C

CPU Max Frequency : Denver 2: 2 GHz Cortex-A57: 2 GHz

Temperature : -40~+85℃

SD card interface : 1*

CAN : 2*

Weight : 51g

Power Supply : +7V~+19V

Board Size : 87mm×60mm×16mm

Contact Now

Industrial Single Board Computer AI Embedded PC Board Jetson TX2 Module 900-13636-0010-000 Development Board

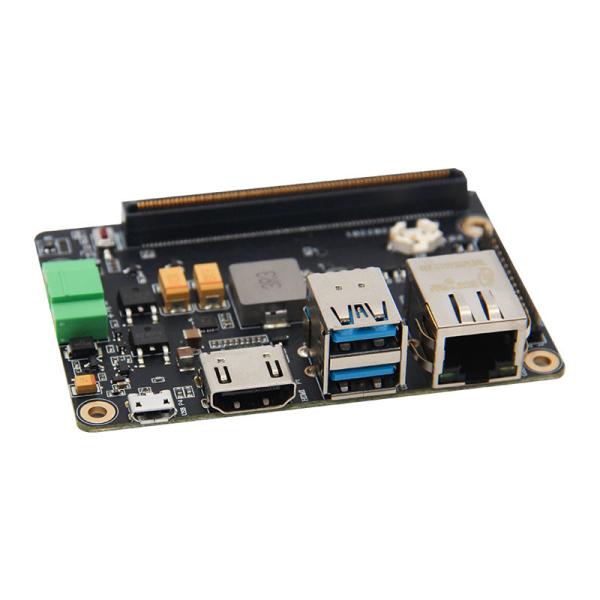

NVIDIA Jetson Carrier Board TX2 Module 900-13636-0010-000 Y-C1-TX2

Jetson TX2 900-13636-0010-000 series modules all made possible by the NVIDIA Pascal™ GPU architecture with 256 NVIDIA® CUDA® cores and up to 8 GB memory for fast compute and inference. enable deep learning applications in small form-factor products like drones and more. factory robots and enterprise collaboration devices. The NVIDIA Jetson portfolio includes a variety of small modules to meet power, performance, and form-factor requirements across use cases and industries. Each Jetson solution is a complete System on Module (SOM) that includes GPU, CPU, memory, power management, high-speed interfaces, and more.

NVIDIA Jetson TX2 series 900-13636-0010-000 Modules:

TX2 8GB: Pascal GPU + 8GB LPDDR4 + 32GB eMMC2

TX2 4GB: Pascal GPU + 4GB LPDDR4 + 16GB eMMC

TX2i: Pascal GPU + 8GB LPDDR4 + 32GB eMMC

NVIDIA Jetson TX2 Module 900-13636-0010-000 Technical Specification

Module	TX2 4G	TX2 8G
AI Perf	1.33 TFLOPS
GPU	256-core NVIDIA Pascal™ GPU
GPU Max Frequency	1.12GHz
CPU	Dual-core Denver 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor
CPU Max Frequency	Denver 2: 2 GHz Cortex-A57: 2 GHz
Memory	4 GB 128-bit LPDDR4 51.2GB/s	8 GB 128-bit LPDDR4 59.7GB/s
Storage	16 GB eMMC 5.1	32 GB eMMC 5.1
CSI Camera	Up to 5 cameras (12 via virtual channels) 12 lanes MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps)	Up to 6 cameras (12 via virtual channels) 12 lanes MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps)
Display	2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0 2 x4 DSI (1.5Gbps/lane)
Other I/O	5x UART, 3x SPI, 4x I2S, 8x I2C, 2x CAN, GPIOs
Networking	10/100/1000 BASE-T Ethernet	10/100/1000 BASE-T Ethernet, WLAN
Mechanical	87mm x 50mm 400-pin connector Integrated Thermal Transfer Plate
Video Encode	1x 4K60 (H.265) 3x 4K30 (H.265) 4x 1080p60 (H.265)
Video Decode	2x 4K60 (H.265) 7x 1080p60 (H.265) 14x 1080p30 (H.265)

NVIDIA Jetson Carrier Board NVIDIA Jetson TX2 module 900-13636-0010-000 interface

Interface	Quality
USB 3.0	2
SD card	1
UART(3.3V)	3
HDMI 2.0	1
Debug(3.3V)	1
GPIO(3.3V)	4
Gigabit Ethernet (10/100/1000 BASE-T)	1
CAN	2
I2C(3.3V)	1
Working Temperature	-40~+85°C
Power	+7V~+19V
Size	87mm×60mm×16mm
Weight	51g
